Technagon | TEP/TEW - Configuration for ChargePilot

Connection to the charger

Local connection

Connect to the charger web interface

1. Direct connection to the charger

   1. For the first time login, or the station has a static IP-address, connect your laptop directly with the charger (stand-alone) via the micro-USB (service port)

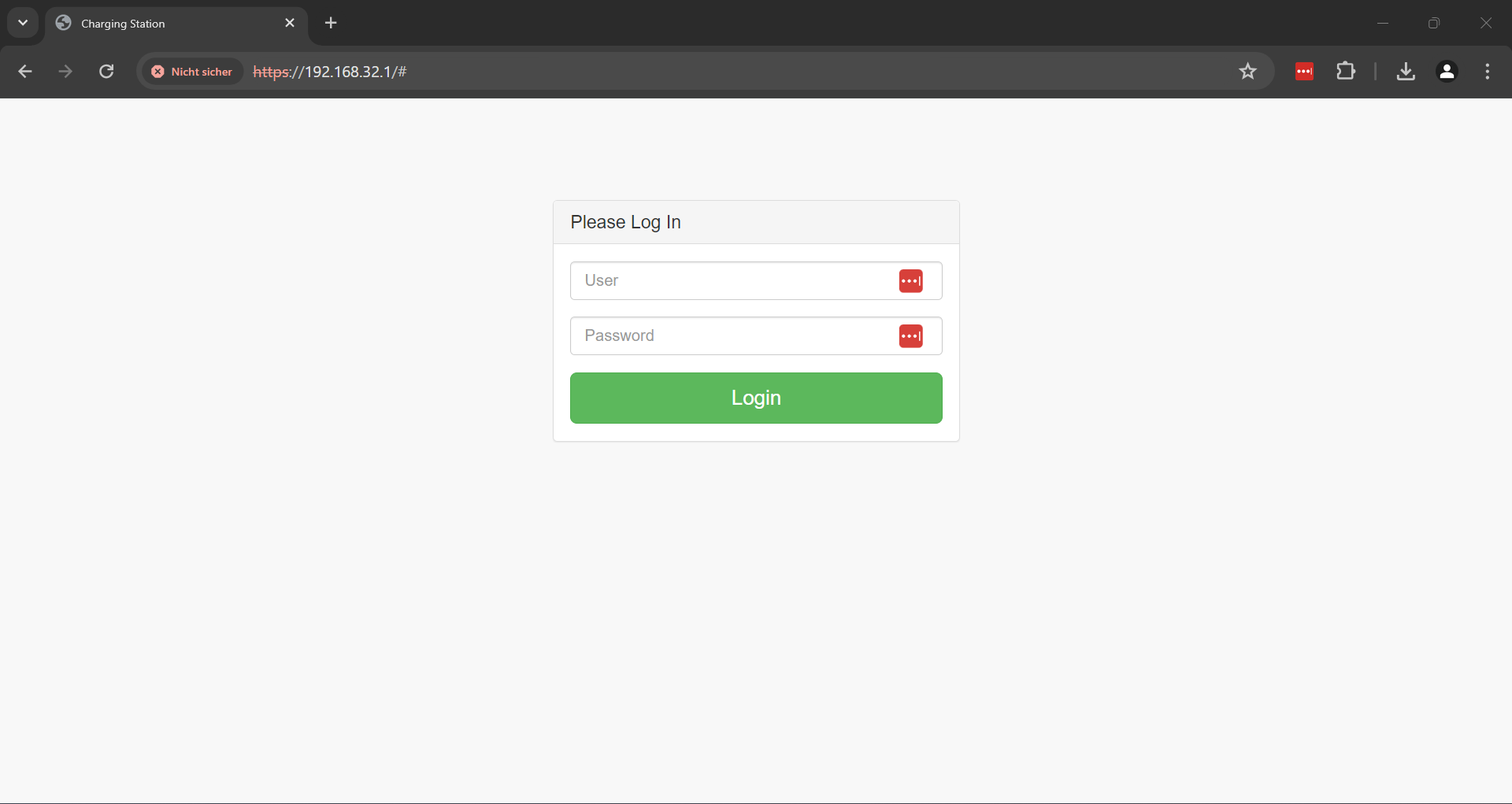

   2. Open your web browser and type in the default IP-address 192.168.32.1 or the configured charger IP-address

2. Indirect connection to the charger via a DHCP server

   1. Connect your Ethernet cable to the router which is also connected to the charger and the DHCP server

   2. Open your web browser and type in the charger IP-address

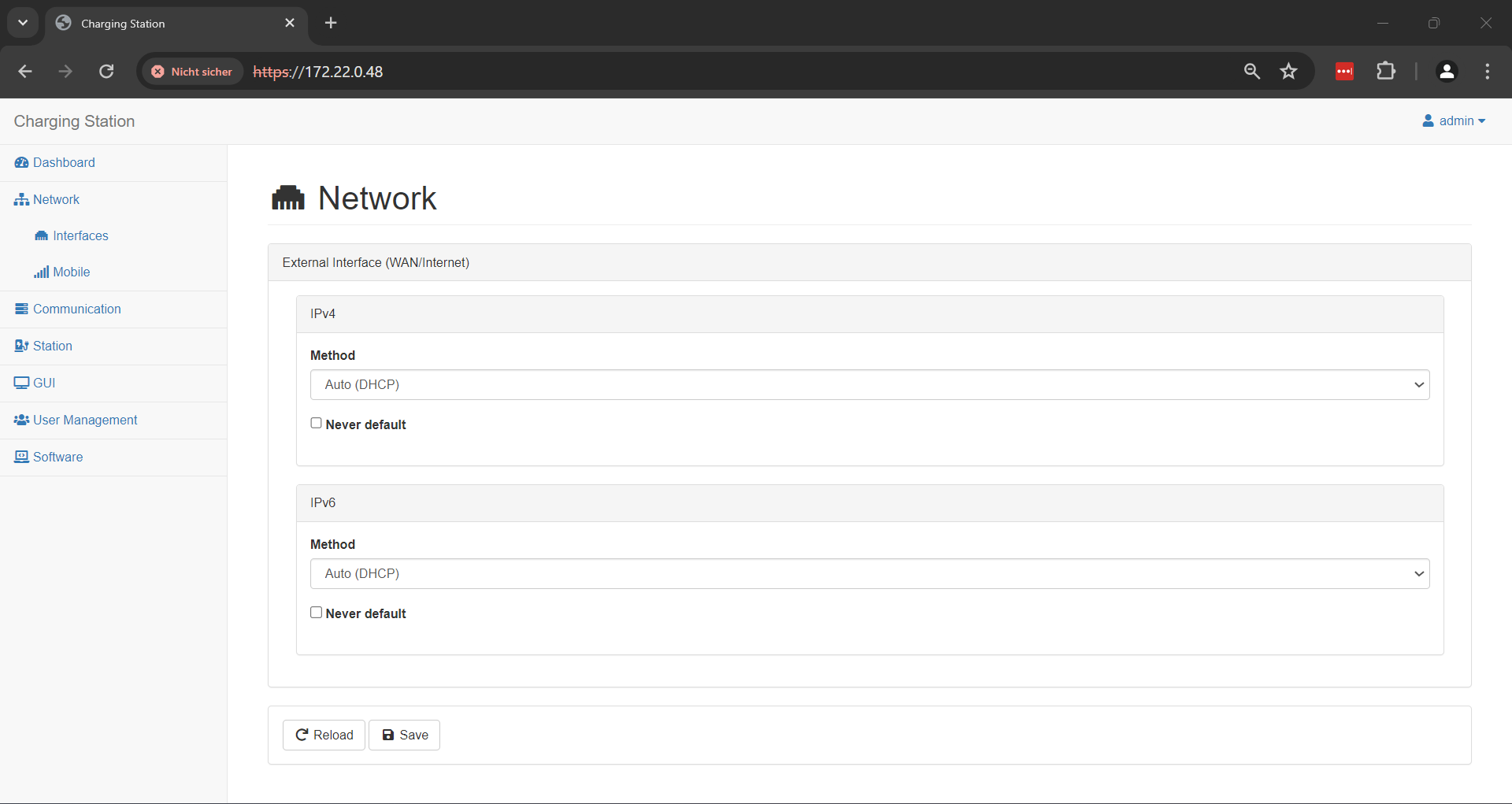

Network settings

Ethernet

• Mode for Ethernet configuration: DHCP

OCPP settings

Backend

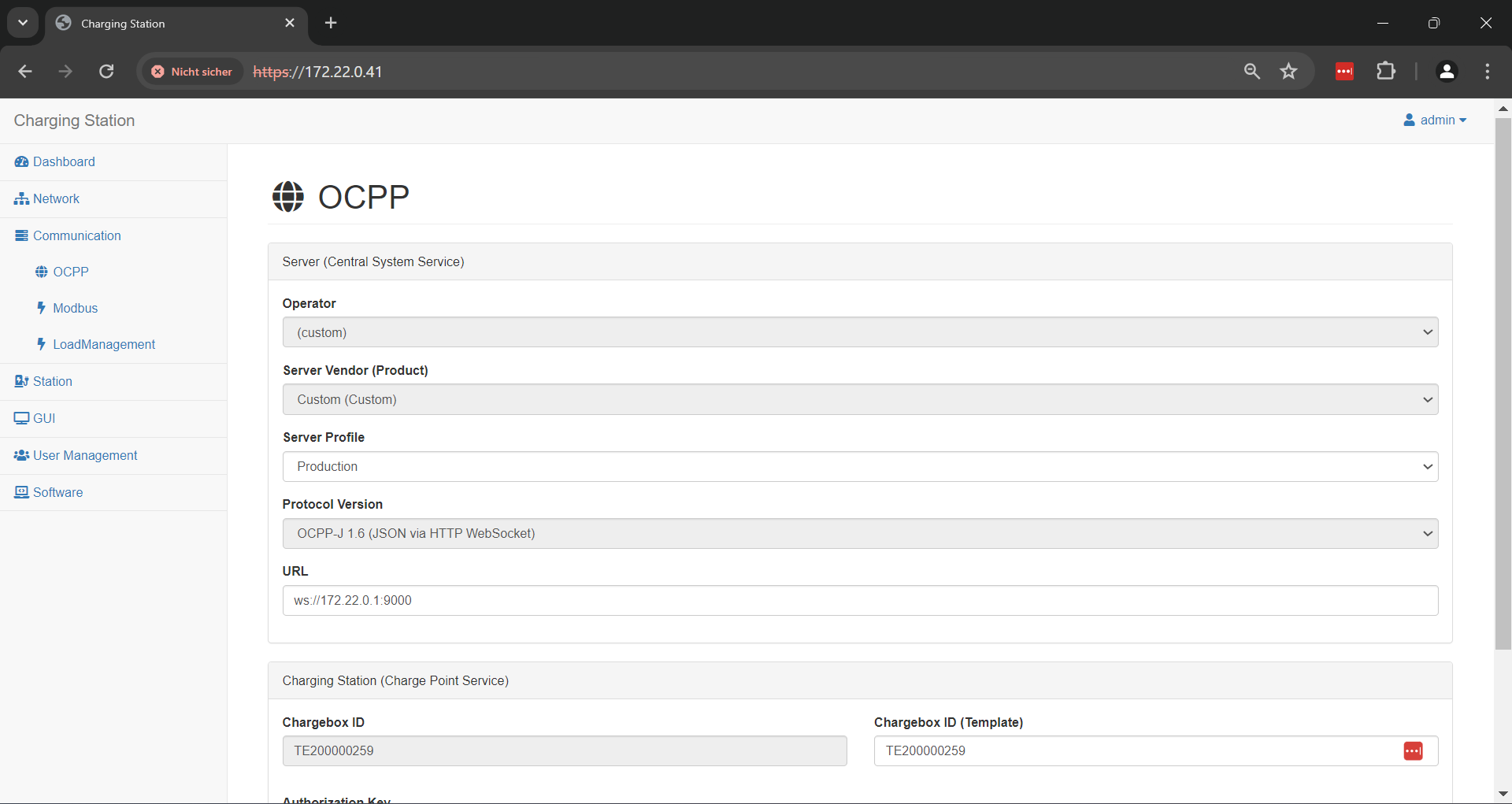

• Navigate to the Communication → OCPP tab
• Connection type: Ethernet
• OCPP Mode: OCPP-J 1.6
• WebSockets JSON OCPP URL of the Backend: ws://172.22.0.1:9000
• Click the Save button

OCPP ChargeBox ID

• Serial number of the charger by default or according to the installation protocol

Other charger settings

Authorization settings

• Navigate to the Authentiation tab

• Configure the parameters as follows:

  • RFID

  • Whitelist

Autocharge/Free charging settings

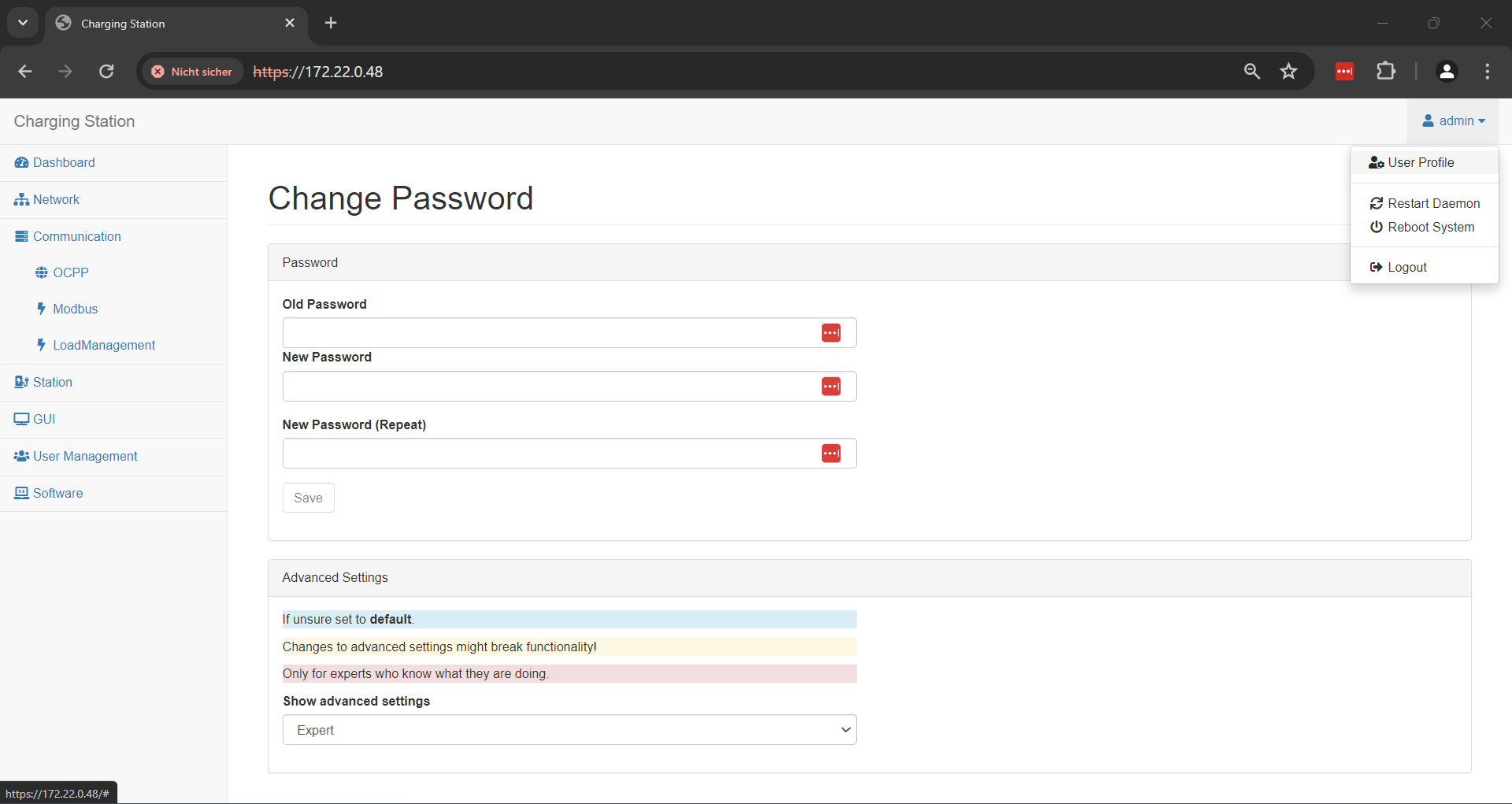

• Navigate to admin tab → User Profile
• Change Advanced Settings to “Expert”

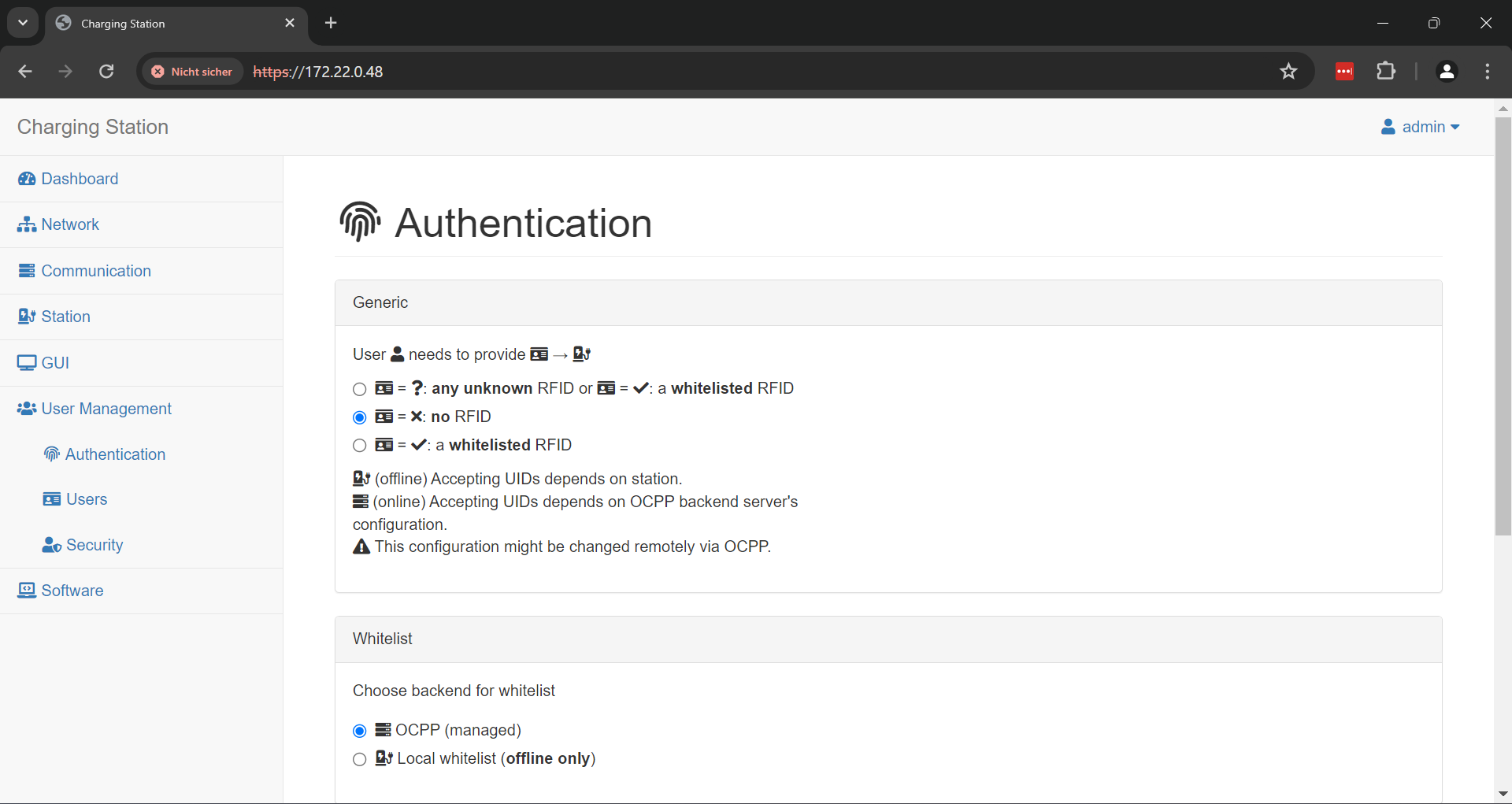

• Navigate to the the Authentiation tab
• Configure the Parameters as follows:

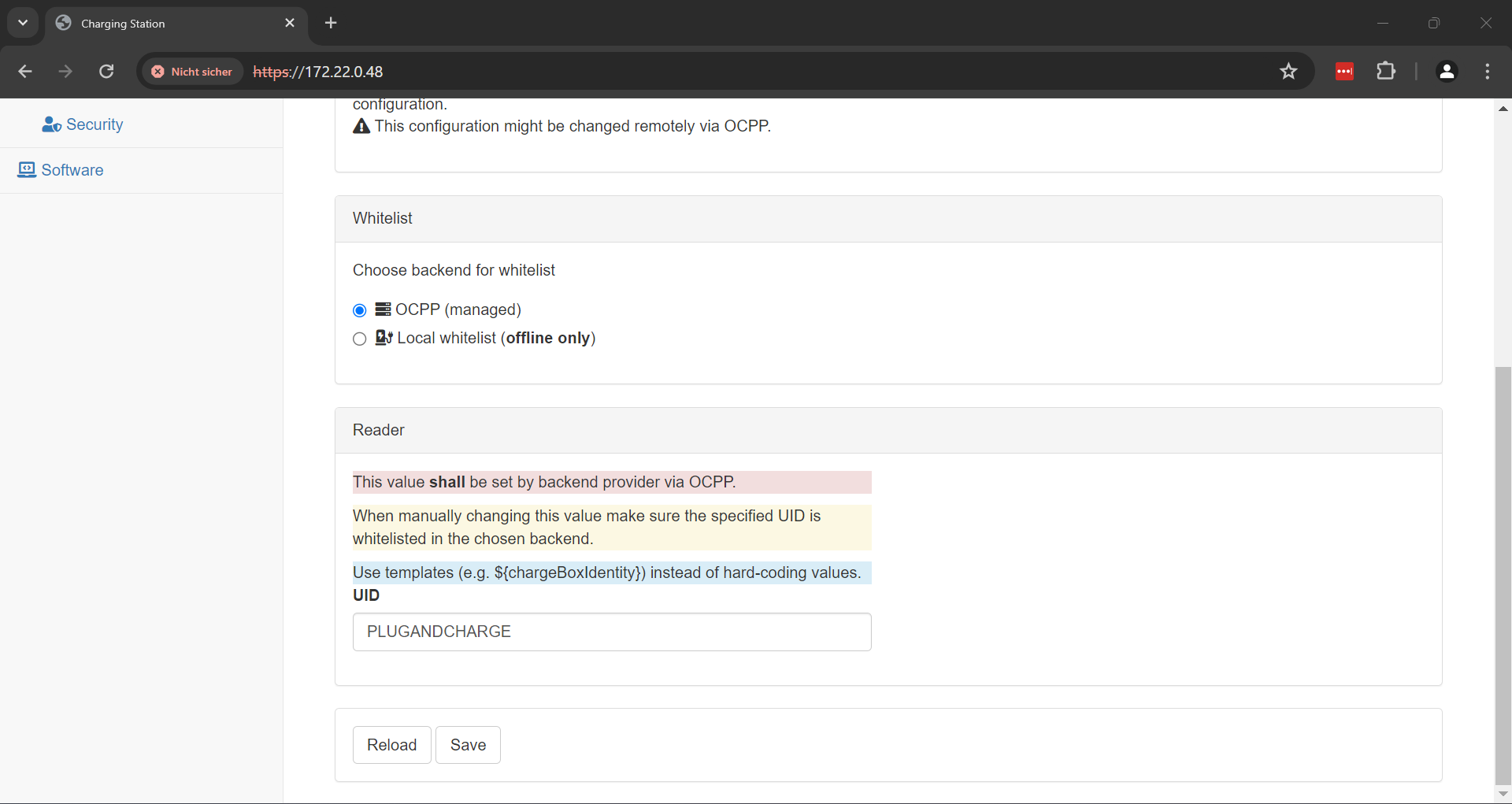

  • RFID: no RFID

  • Whitelist: OCPP (managed)

  • Reader UID: PLUGANDCHARGE

• Click the Save button
