Connection to the charger

The ABL web portal can be accessed by entering the wallbox IP-address in the web browser.

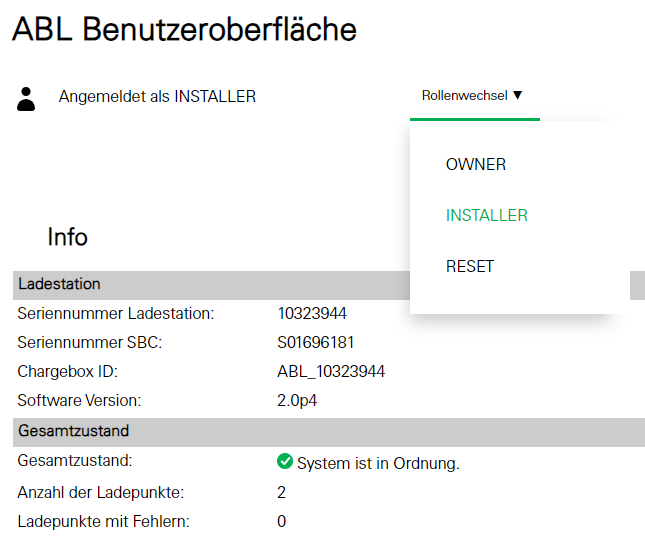

On the web page you can change the role to installer at “Change role” for Admin/Edit mode.

• Direct connection to the wallbox

  • Connect your Ethernet cable to the RJ45-port under the cover of the wallbox (next to GMS module)

  • Change your IP-address of your Ethernet adapter to 169.254.1.2

  • Open your web browser and type in 169.254.1.1:8300

• Indirect connection to the wallbox via a DHCP server

  • Connect your Ethernet cable to the router which is also connected to the wallbox and the DHCP server

  • Open your web browser and type in <wallbox IP>:8300 or <wallbox IP>:80. The wallbox IP-address can be found in the micro service “dhcp” logs of balena (a reboot of the wallbox is required).
    You can use port forwarding to reach the wallbox when this function is activated.

Network settings

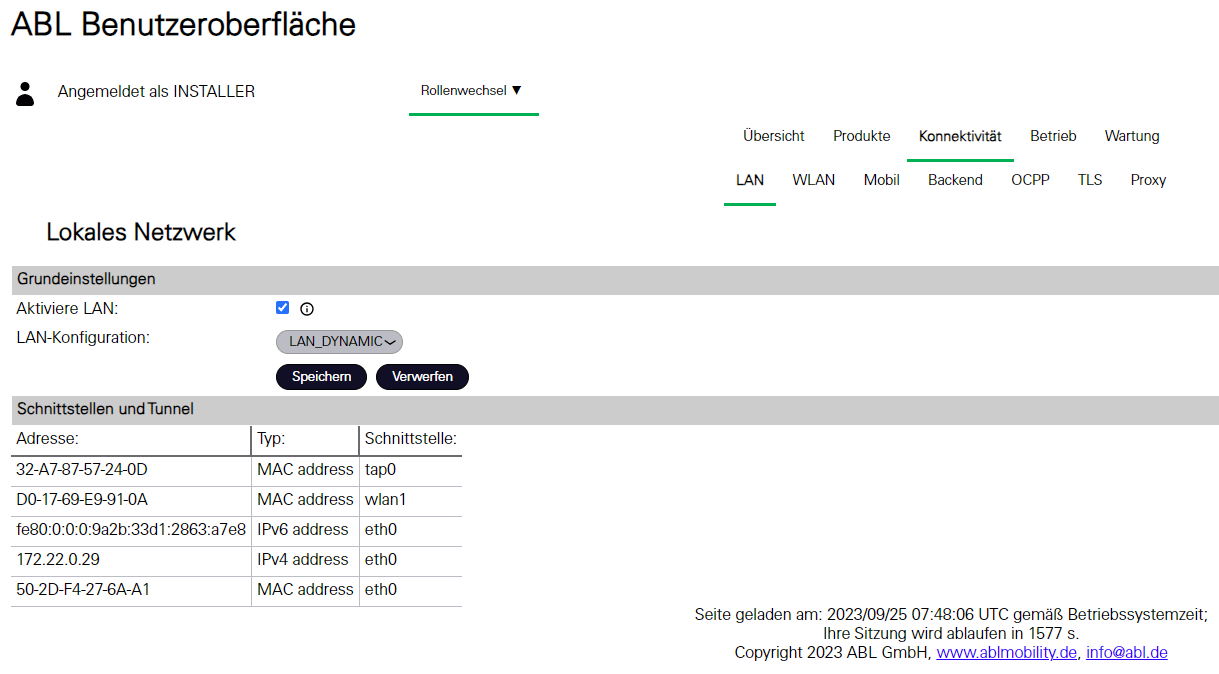

1. Go to Connectivity → LAN

2. Enable the “LAN”

3. LAN configuration: “LAN DYNAMIC”

4. Click the “Save” button

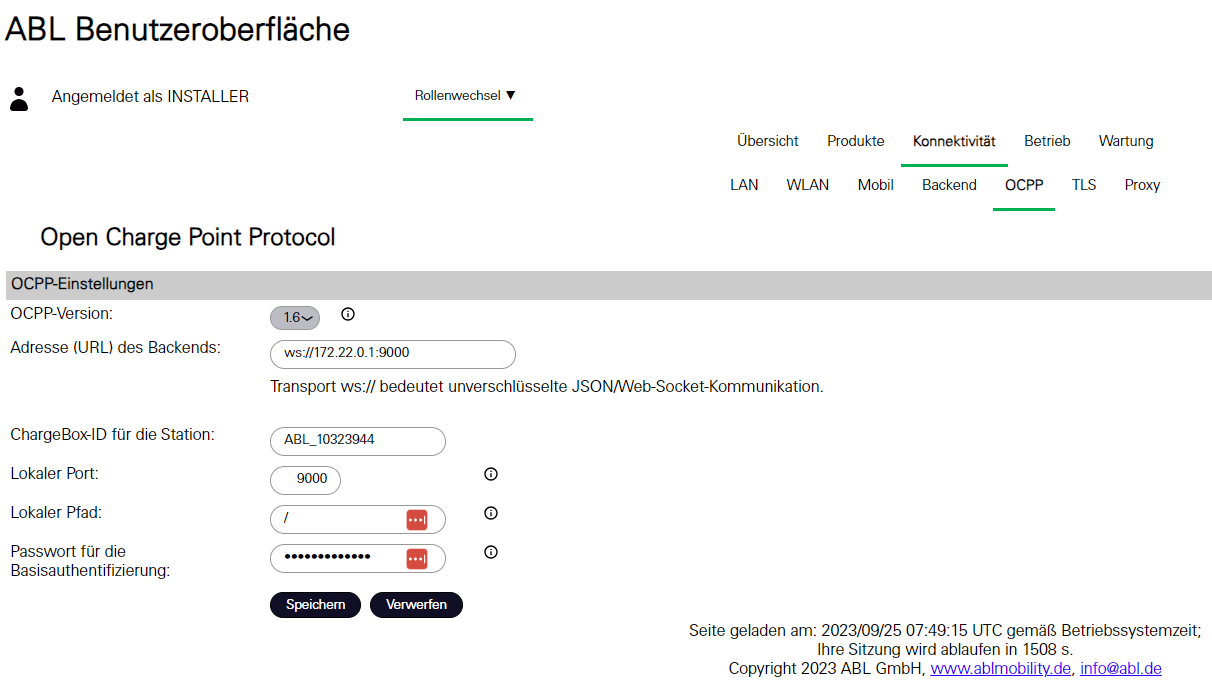

OCPP settings

• Go to Connectivity → OCPP

• Configure the following entries

  • OCPP Version: 1.6

  • URL: the IP of our controller (default: ws://172.22.0.1:9000)

  • ChargeBox ID must be identical in the Device ID in the Admin UI:
    ABL_<wallbox serial number>
    e.g. ABL_3W226302616

  • Local port: 9000

  • Local path: empty

  • Basic authentication password: not used for ChargePilot. Used if the wallbox is connected to a wss backend

• Click the “Save“ button

• Go to Maintanance → System → Execute soft reset

Other charger settings

Authorization settings

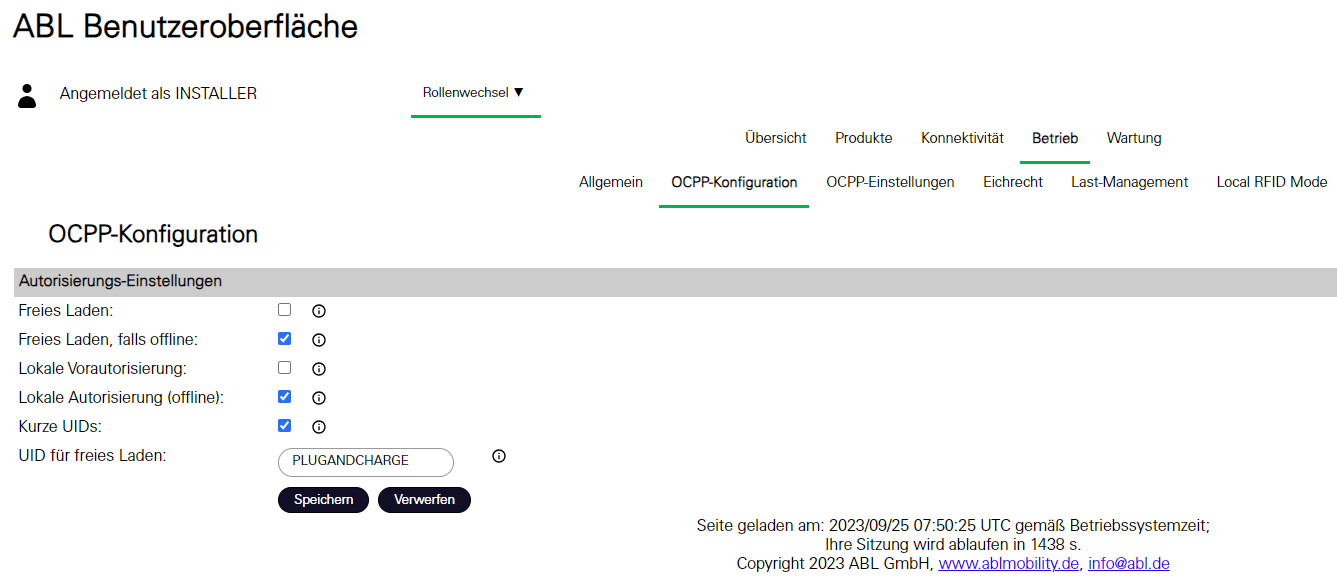

• Go to Operation → OCPP configuration → tick the entries under the Authorization Settings:

  • Lock early

  • Local preauthorization

  • Local authorization if offline

• Click the “Save” button

Autocharge/Free charging settings

Free charging

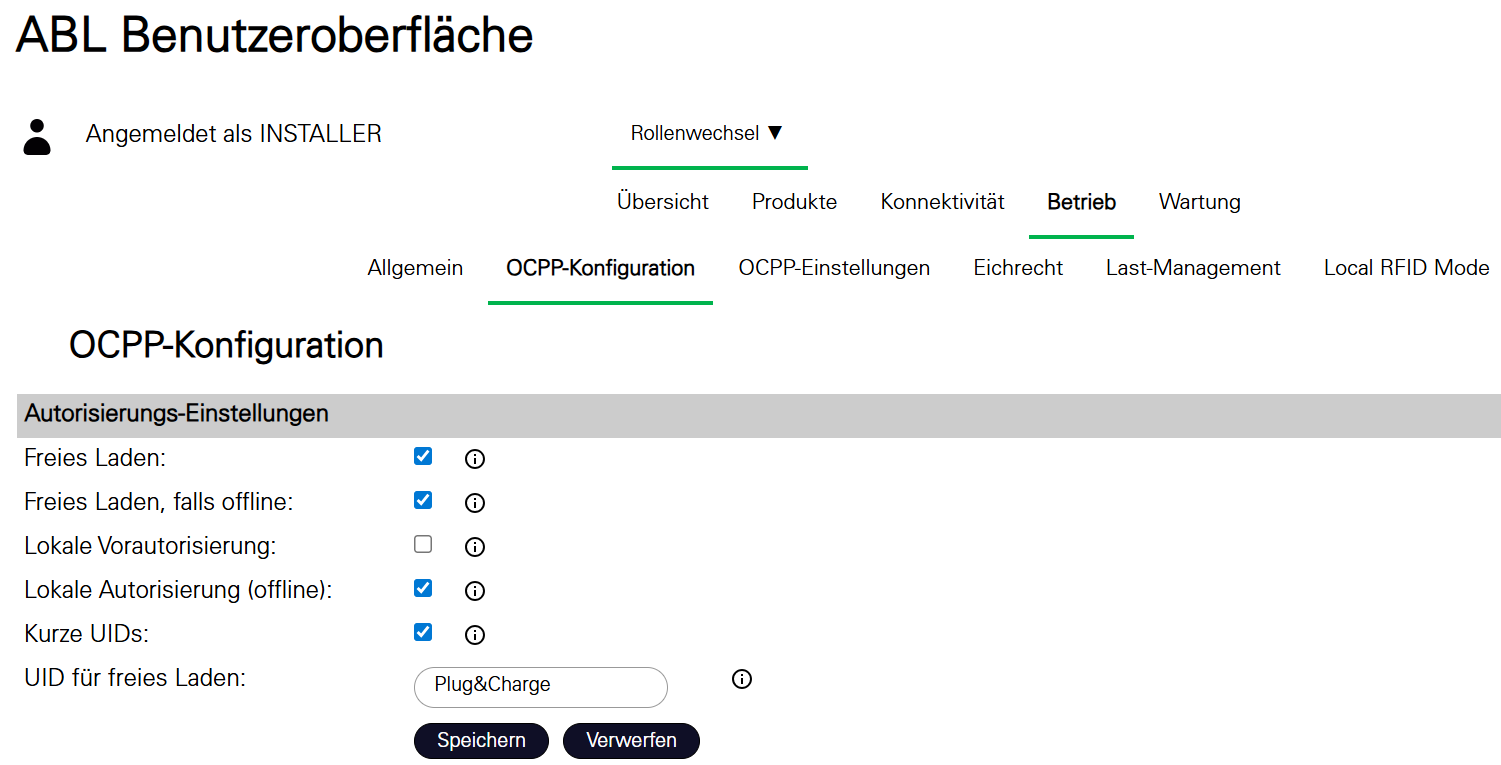

• Go to Operation → OCPP configuration → tick the entries under the Authorization Settings :

  • Free charging when offline

  • Local authorization if offline

• UID for free charging is "PLUGANDCHARGE"

• Click the “Save” button

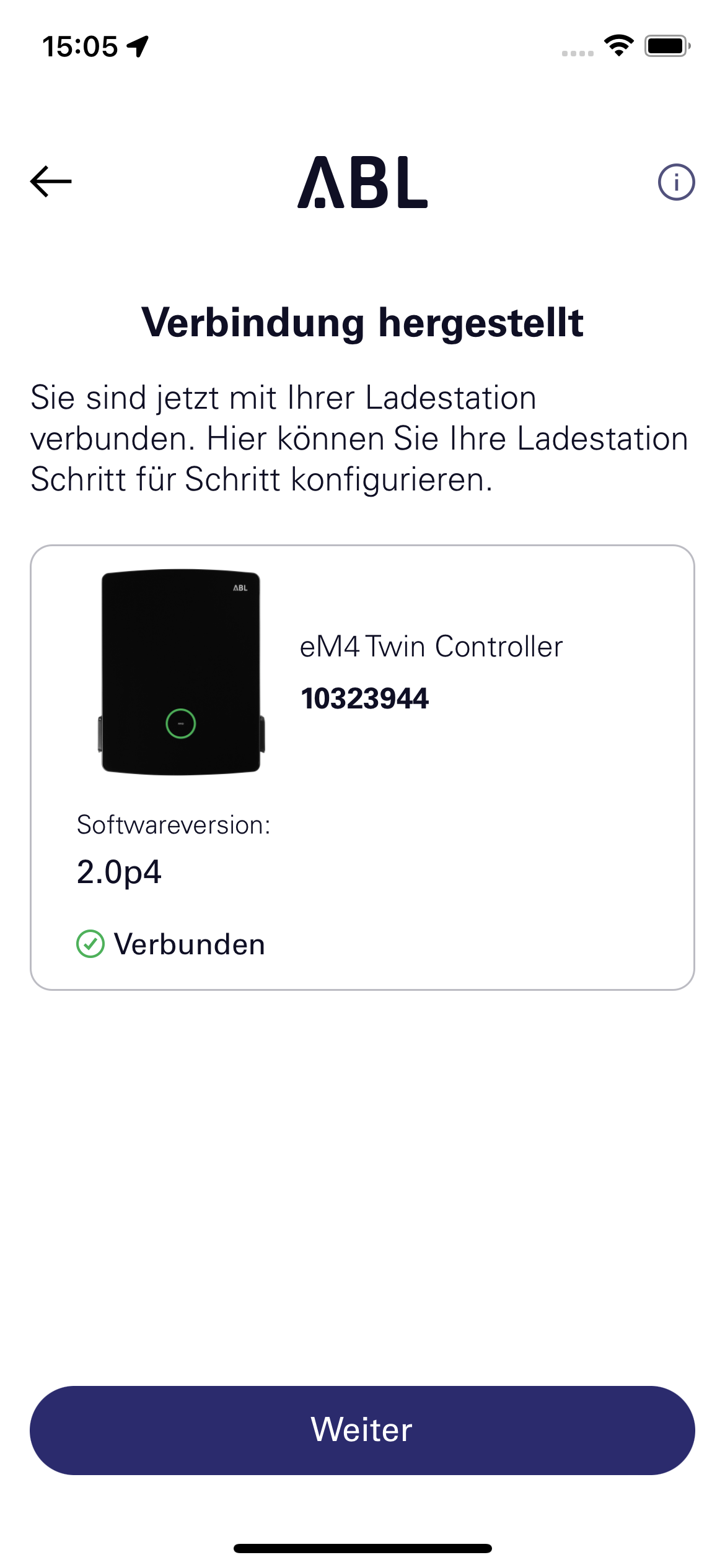

1. Select the Controller to be configured

2. Click the “Contunue” button

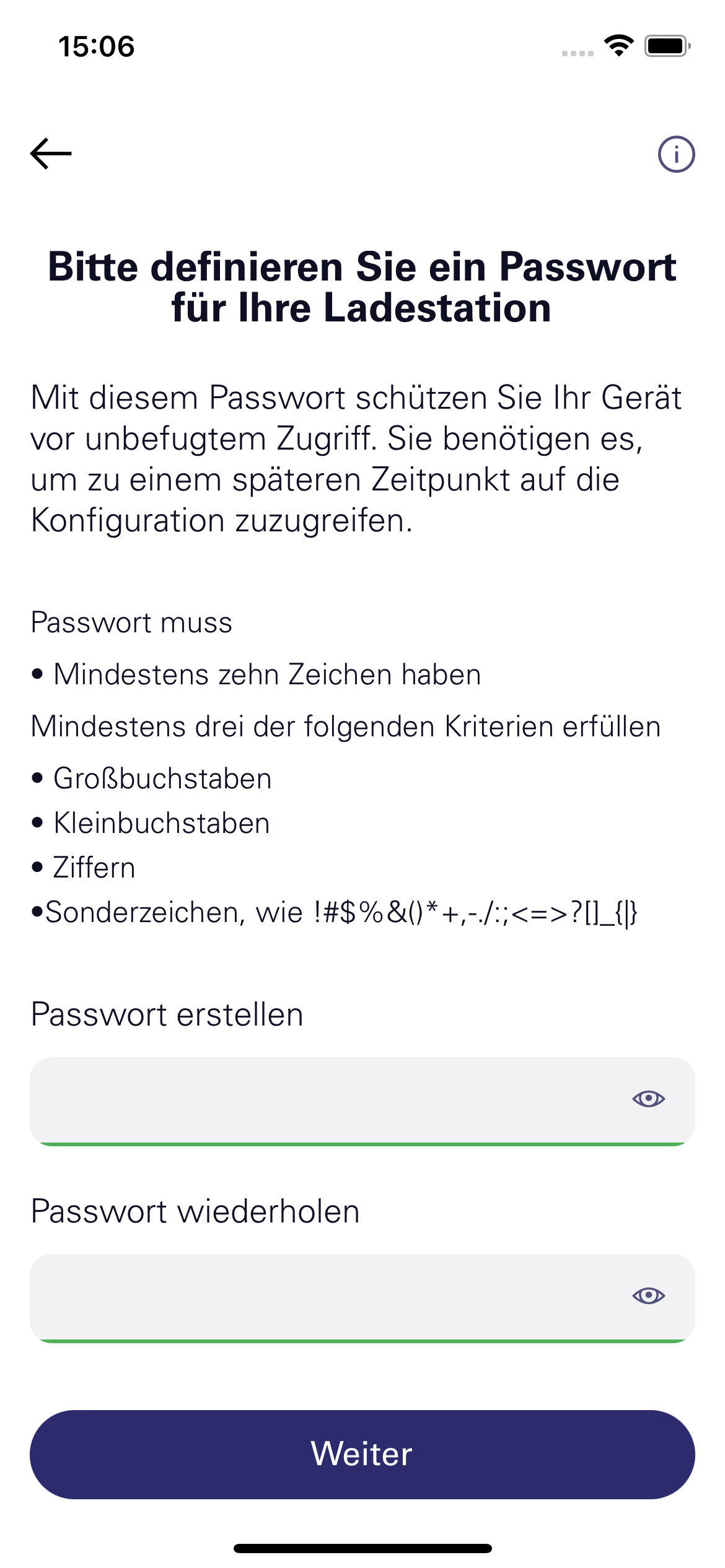

1. Set a passwort for the access of the wallbox when connecting to it in the future

2. Click the button “Continue”

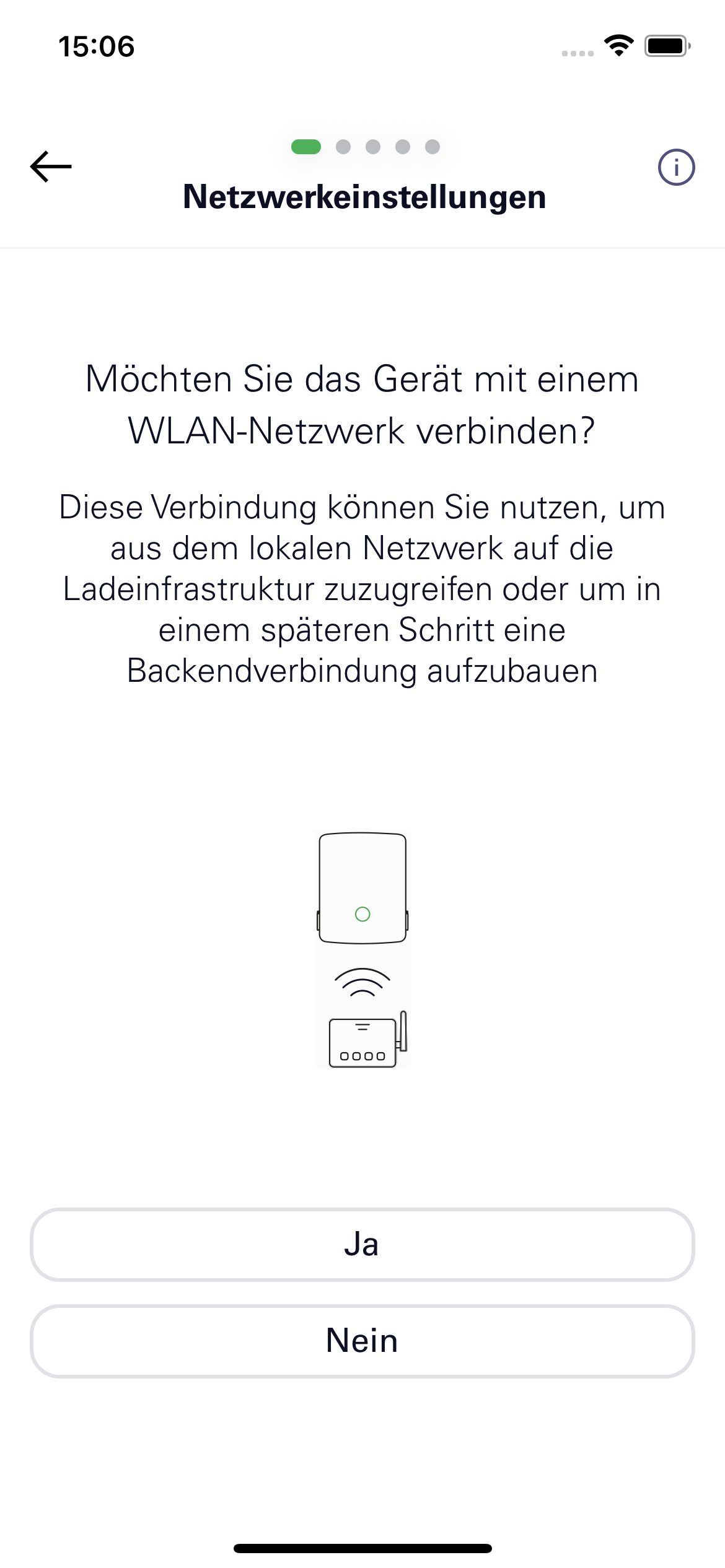

1. Select “Yes”, if the charger is also connected to a Wi-Fi router, otherwise select “No”

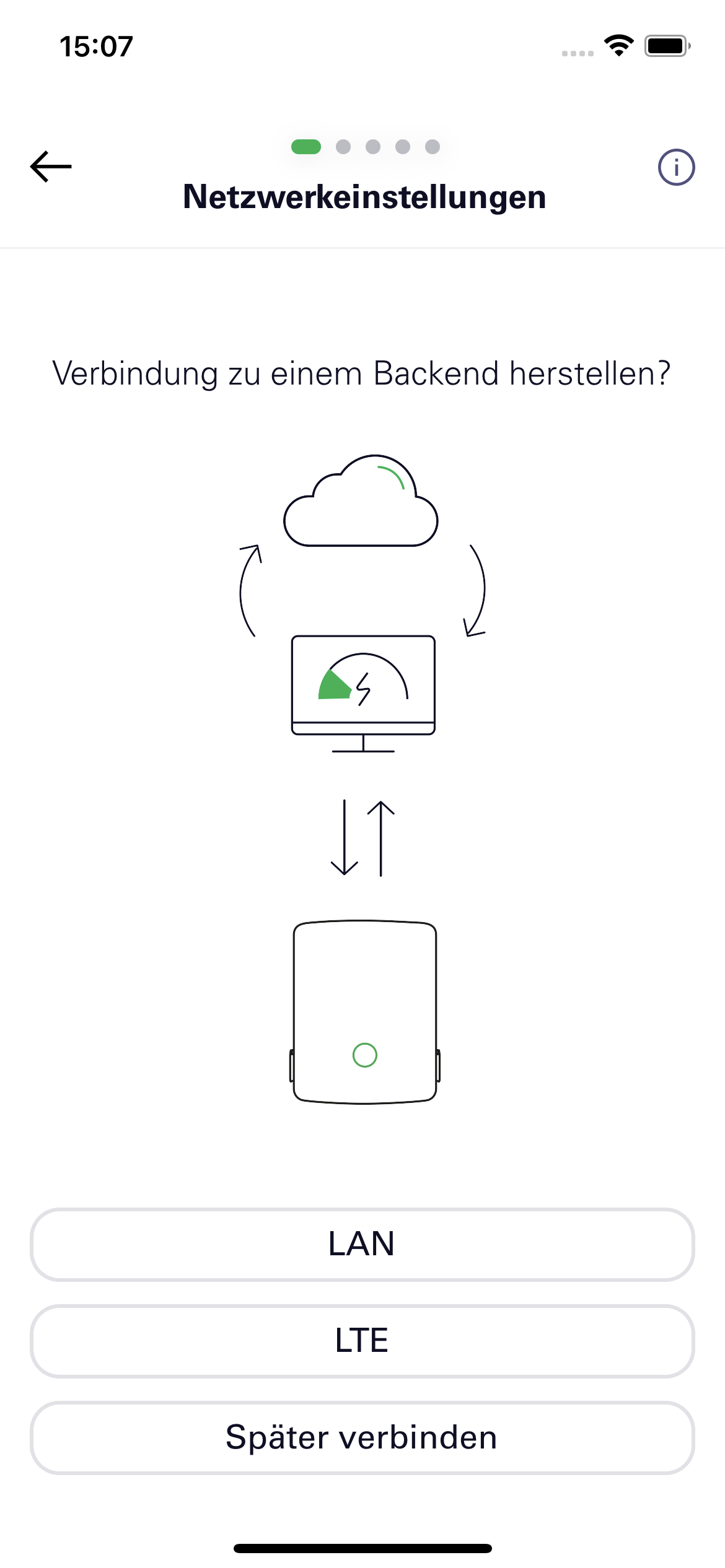

1. Select “LAN”

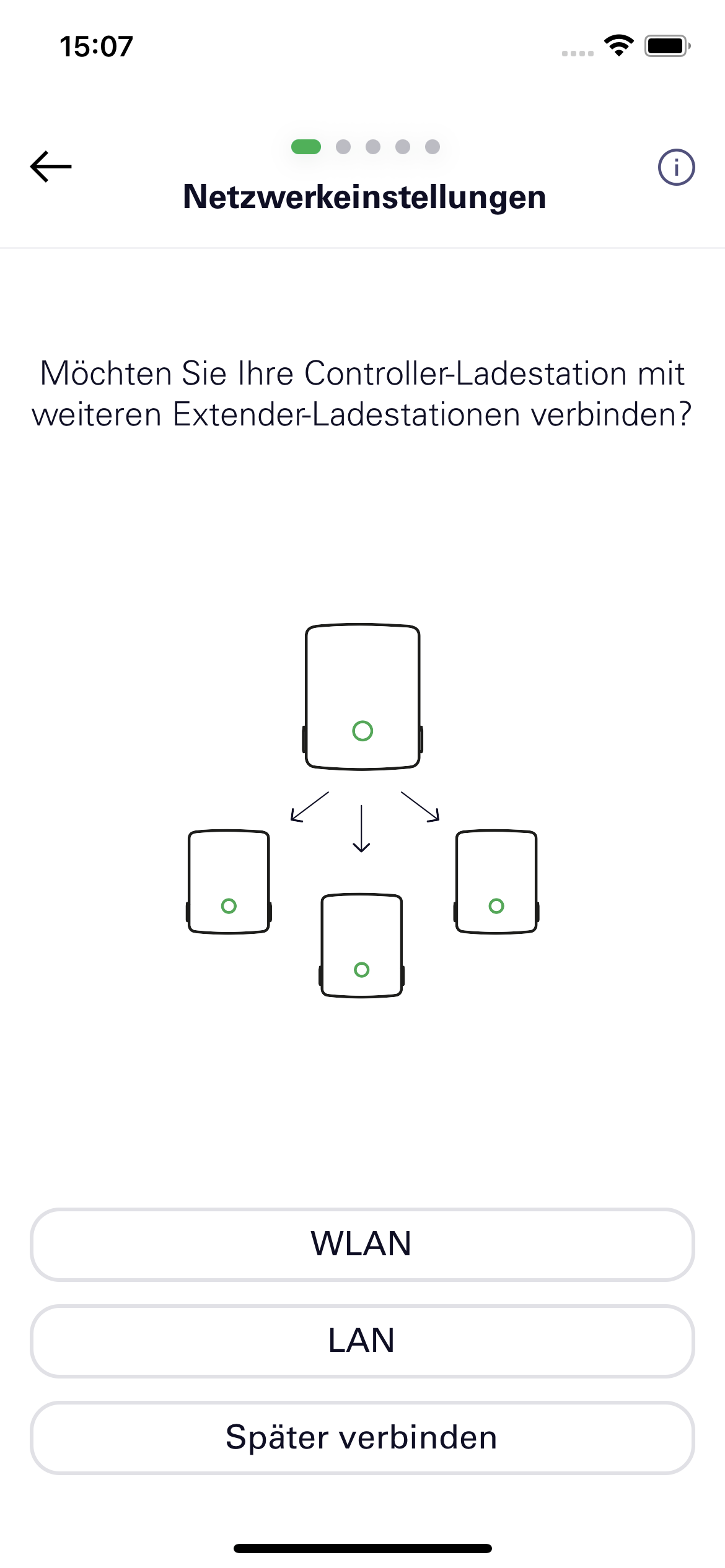

1. Select “LAN” if this Controller is connected to the Extenders via LAN. Select “Wi-Fi” if this Controller is connected to the Extenders via Wi-Fi

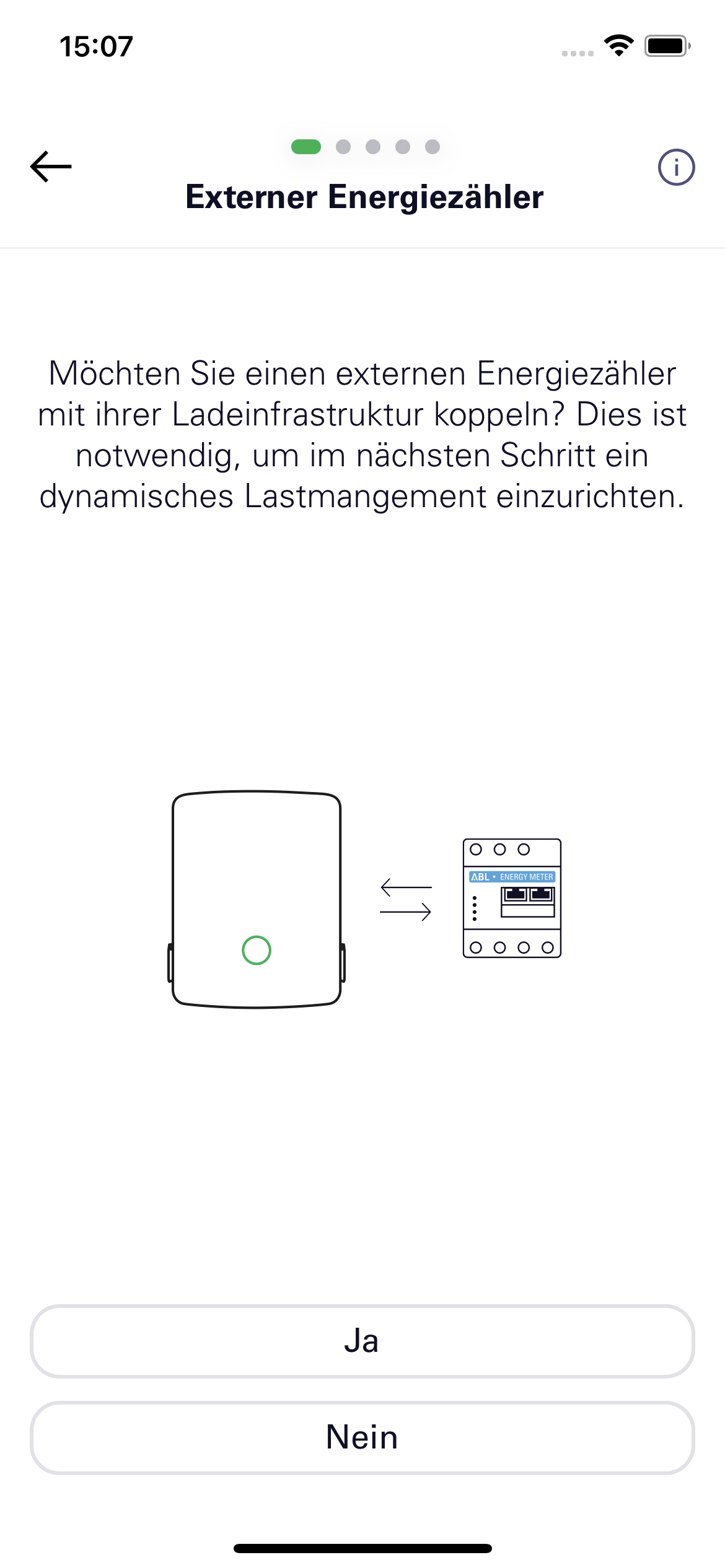

1. Select “No”

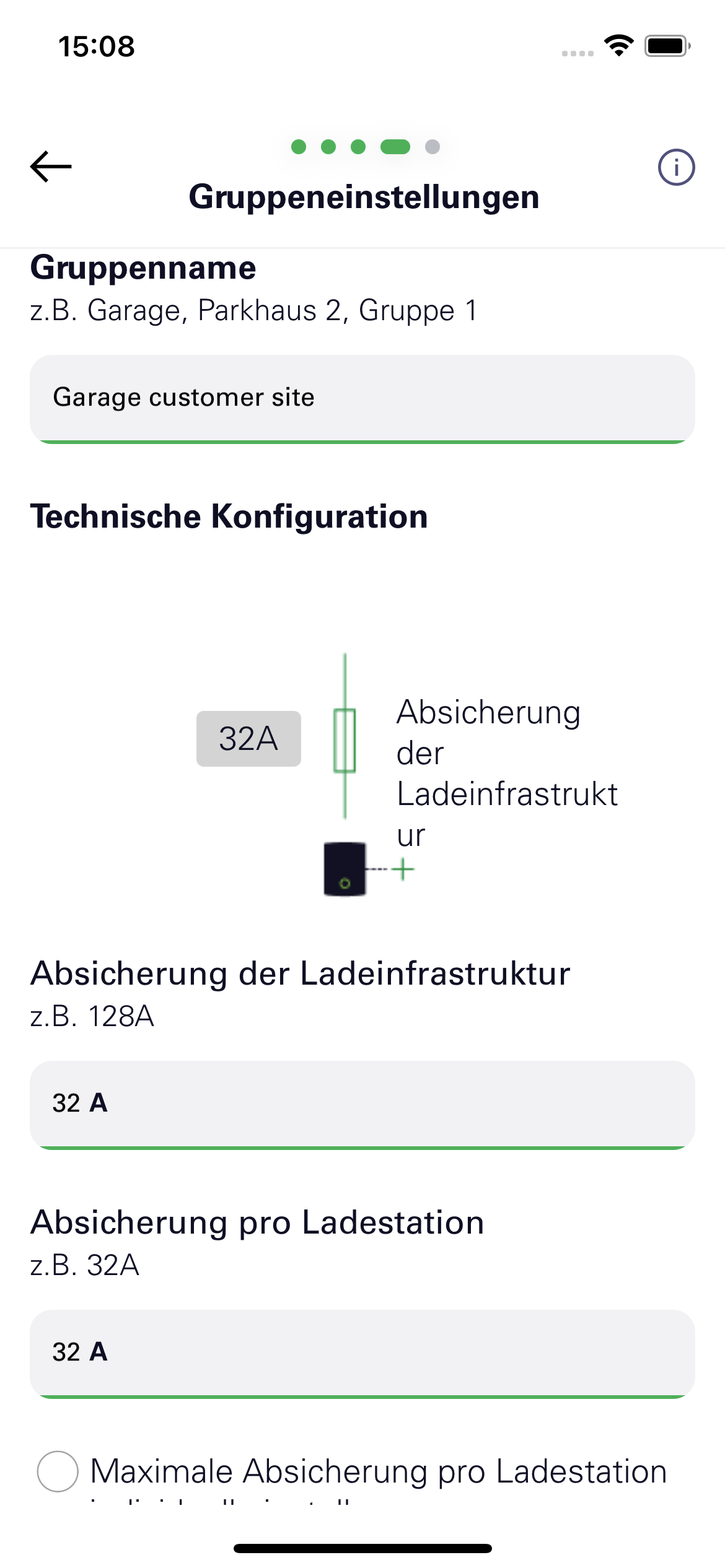

1. Enter the installed fuse capacity at this charger

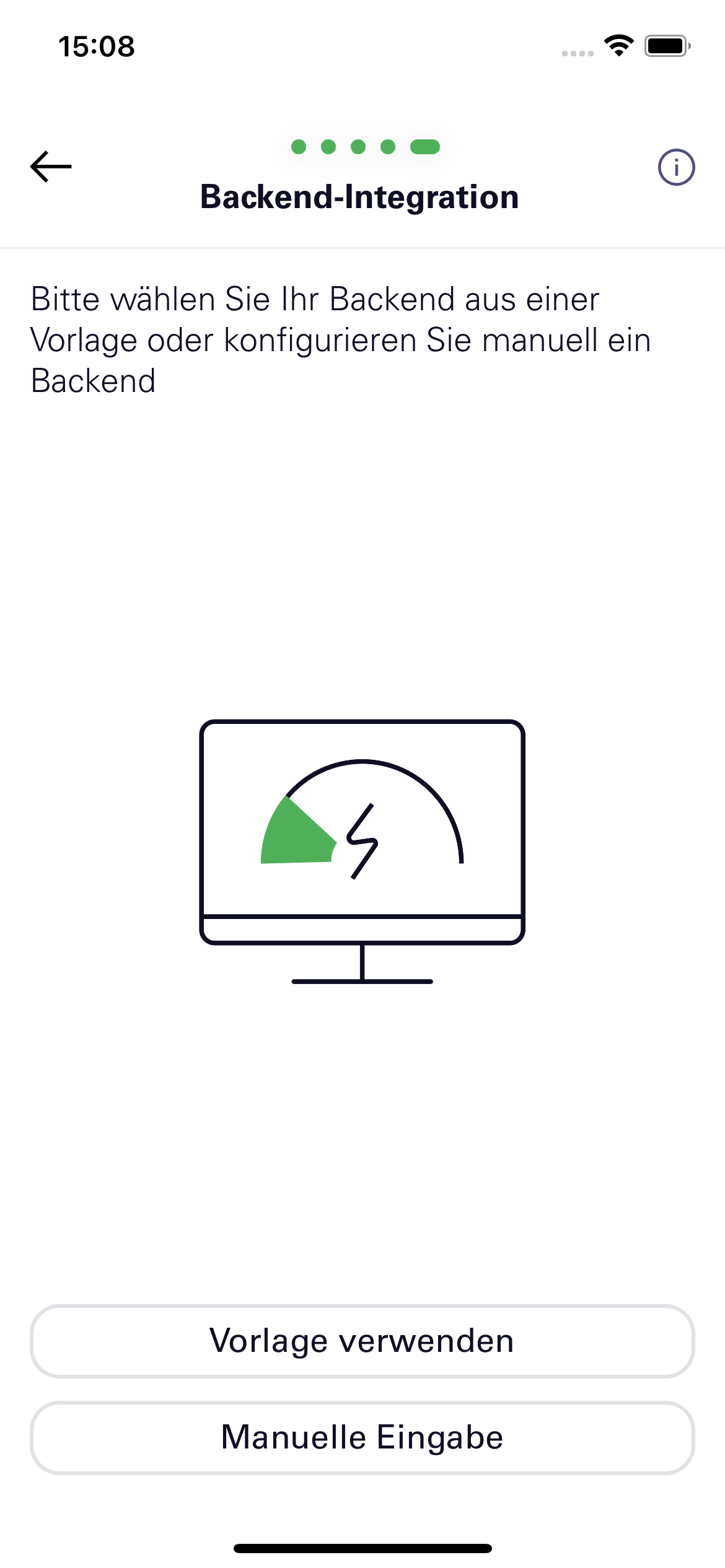

1. Select “Use template” for ChargePilot, or

2. Select “Manual Input”

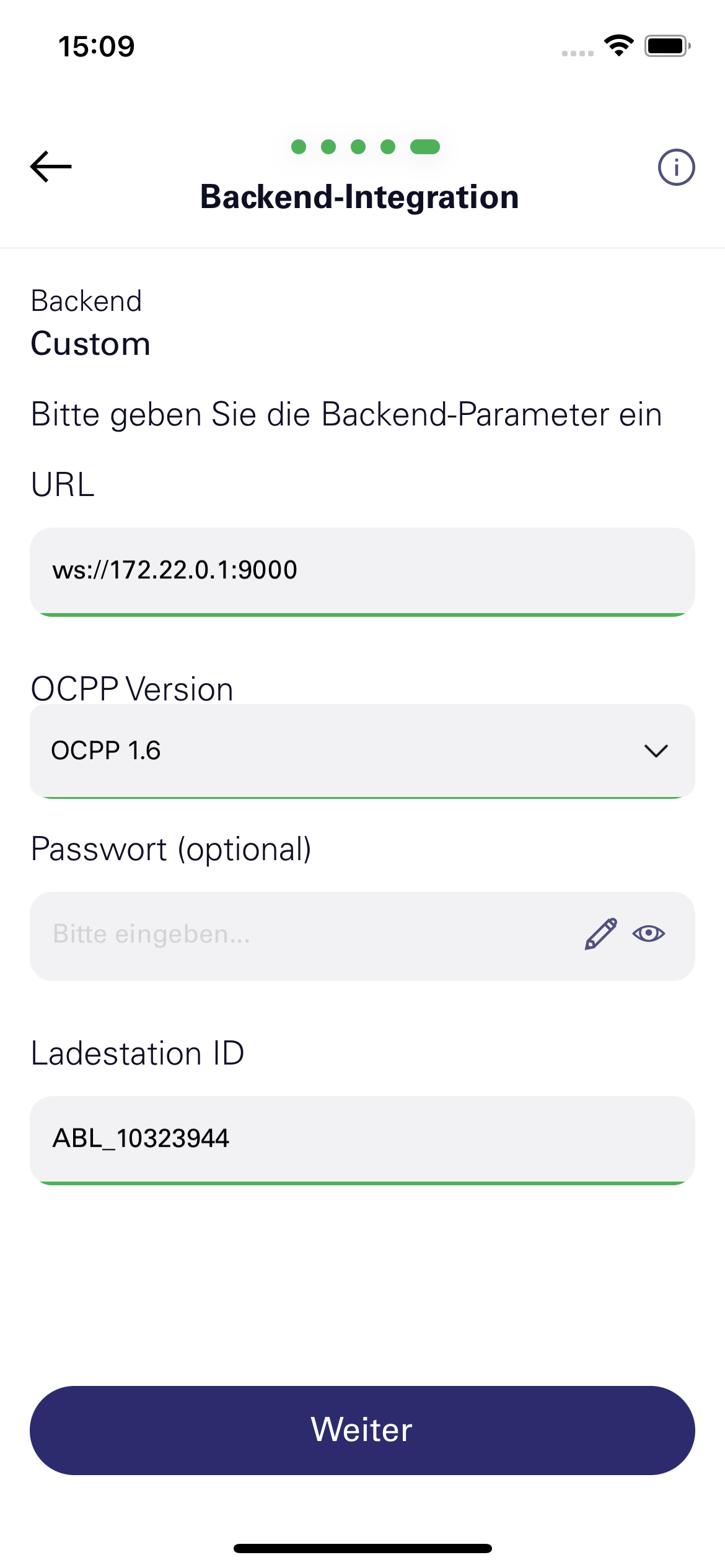

4. Change the backend settings

   1. URL: ws://172.22.0.1:9000

   2. OCPP Version: OCPP 1.6

   3. ChargeBox ID: ABL_<wallbox serial number>
      (this must be identical to the Device ID in the Admin UI)

5. Click the “Continue” button

1. Charger will reboot, after the reboot, a QR code for connection information will be generated
