Wirelane | Light & Charge - Configuration for ChargePilot

Modified on Thu, 7 Aug at 7:55 AM

Before starting the configuration, please check the charger firmware version complies with the latest compatible firmware version.

Addtional or deviating steps are listed below

Connection to the charger
Login Credentials	Username: operator PW: <aquired from the vendor or customer>
Other charger settings

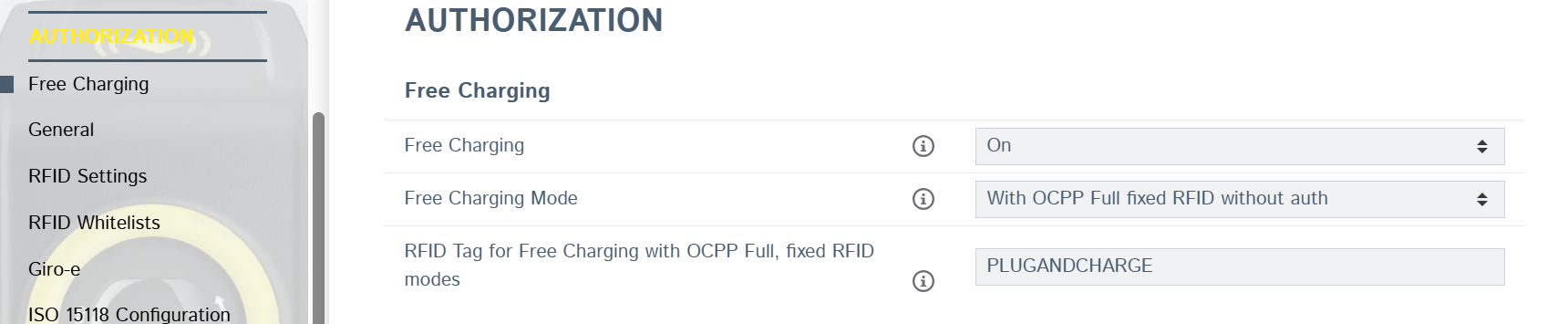

Autocharge/Free charging settings When this function is activated, charger starts transaction either with the identifier predefined in the charger, or with the EV MAC address (Plug & Charge). Navigate to Authorization Configure the Parameters as follows: Free Charging: On Free Charging Mode: With OCPP Full fixed RFID without auth RFID Tag: PLUGANDCHARGE The `EV MAC address`/`Plug & charge ID` must be stored in the backend correspondingly Save the settings

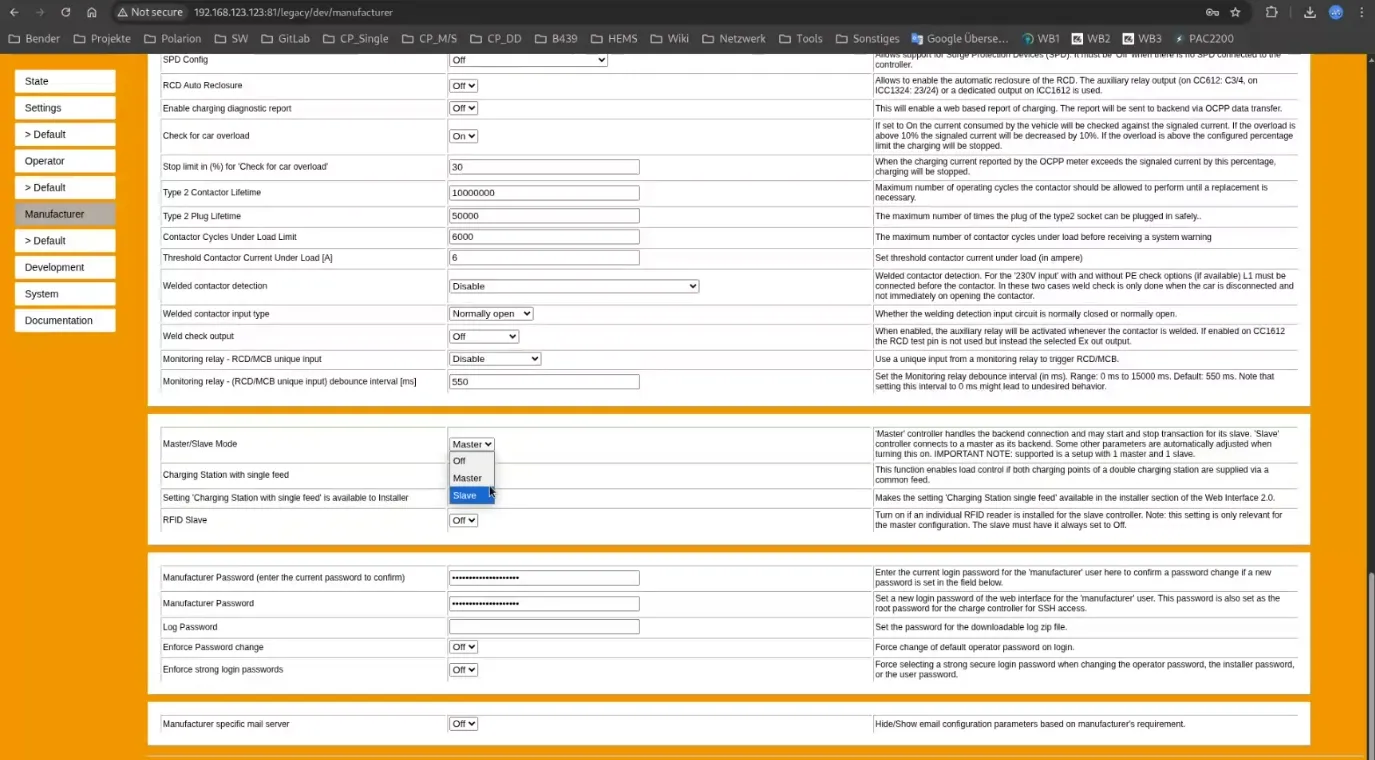

Master-Slave settings Both Master and Slave are using the same chargerId. Master uses the connectorId _1, and Slave uses the connectorId _2 Check the charger settings Navigate to Load Management → Dynamic Load Management Configure the Parameters as follows: Dynamic Load Management - DLM Master/Slave: Disabled Navigate to Manufacturer Configure the Parameters as follows: Master/Slave Mode: Master or Slave accordingly Click Save & Restart The tab “Manufacturer” is available only in the web interface with the charger FW version ≥6.1 With the FW version below 6.1 please use the link http://192.168.123.123:81/legacy/manufacturer/manufacturer or http://<IP>:81/legacy/manufacturer/manufacturer The settings e.g. backend url, chargerId for the Master will be applied to the Slave(s)
